HSR Finishing
Constant-Z Machining
Hybrid Constant-Z
Helical Machining
Tool path follows asurface contour at different z-heights - best for semi-finishing and finishing of steep walls.
Combination of a traditional Constant Z strategy with 3D pocketing. Adding additional passes when there is a shallow area between consecutive passes, makes this strategy the best for the optimal finishing of the entire part
Covers the whole model with continuous descending helical tool paths, avoiding needless jumps to clearance area.
Horizontal Machining
Linear Machining
Radical Machining
Automatically detects all flat areas of the part and clears them with an offsetting path at the z-level of each area.
Creates tool paths from linear patterns generated by a defined Step Over projected onto a model surface.
Generates a Radial pattern around a defined central point projected onto a model surface
Spiral Machining
Morphed Machining
Offset Cutting
A spiral tool path radiating from a central point that keeps constant contact between the cutter and part, as it machines within a given boundary
Boundary Machining
Morphed machining strategy cuts the surface with passes that resemble the shape and direction of the drive curves. Each path gradually changes its shape to transform from the first defined curve to the second one.
Rest Machining
3D Constant Stepover
The parallel to Drive curve cuts are multiplied and offset by user-defined step over, to machine the part surface.
Produces a single path along a defined Drive boundary - popular for Engraving and Chamfering.
Determines remaining material left by previous operations, and generates a tool path that only includes the left over stock.
Equidistant 3D passes along the surface of a part give full model coverage, providing high surface quality.
Pencil Machining
Parallel Pencil Milling
3D Corner Offset
Creates tool paths along internal corners and extremely small fillets to remove material that no other strategy can reach. Ideal for finishing corners and areas where the surface radius is the same as the cutter.
An extension to Pencil milling where the user multiplies single line tool paths by using defined Step overs. Particularly useful when the previous cutting tool was unable to machine all internal corners to size.
A set of equidistant pencil passes, created at the corners of the part, follows the 3D surface of a model to provide smooth finishing.
Prismatic Part Machining
Designed specifically for finishing parts containing features located on flat planes, including shallow faces and vertical walls.
Combined Strategies
Combines a Constant Z machining tool path with the following tool path strategies:
• Horizontal Machining
• Linear Machining
• 3D Constant Step Over
• 3D Corner Offset Machining
SolidCAM’s Proven & Powerful Simultaneous 5-Axis
Benefit from the most tested and proven 5-axis CNC milling tool paths in the industry, with a very straight-forward user interface, and the most advanced control over all aspects of tool path and collision checking.
HSR Roughing
Contour Roughing
Hatch Roughing
Rest Roughing
Pocket-style tool path for sections generated on different Z-levels, specified by a definedStep down.
Typically generates a straight line tool path on each level of cutting. Useful for the machining of soft materials and parts containing shallow areas.
Completes stock removal for areas missed by larger tools. Uses an updated stock model of the remaining material to avoid air-cutting.
Hibrid Rib Roughing
HM Roughing (Hybrid Machining)
For machining of thin walls with very exotic materials, including titanium, graphite, etc. Combines roughing and finishing tool paths to preserve the highest possible part rigidity.
The HM Roughing strategy reduces rapid movements by controlling the tool motion to remain on the part following previous cut paths, instead of rapid feeding to the new position. Additional tool path optimization features include the automatic machining of flat areas only, rather than adding extra Z-levels to clean up planar zones. This roughing strategy enables the use of a large step over (greater than 50%).
The SolidCAM Brochure
Flexibility and Control
Each 5-Axis machining strategy provides sophisticated options for approach/link control and tool axis control.
Link and approach moves are fully gouge protected and different strategies may be used depending on the distance of the link move. SolidCAM also provides options for control over lead/lag and side tilt angles to give complete control over the final toolpath.
Collision Avoidance for Tool and Holder

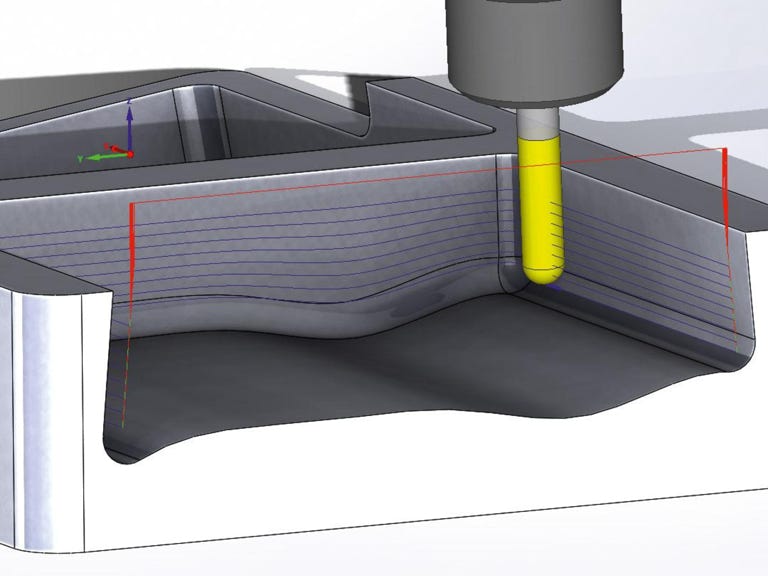

SWARF Machining

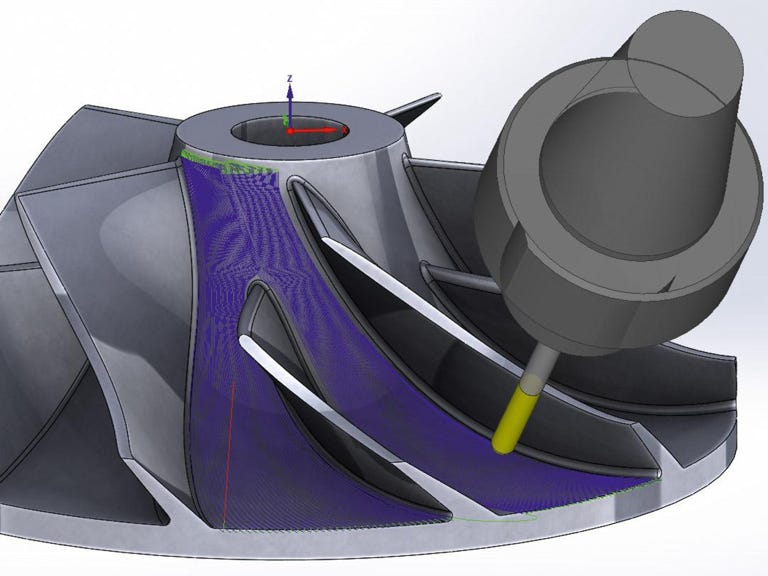

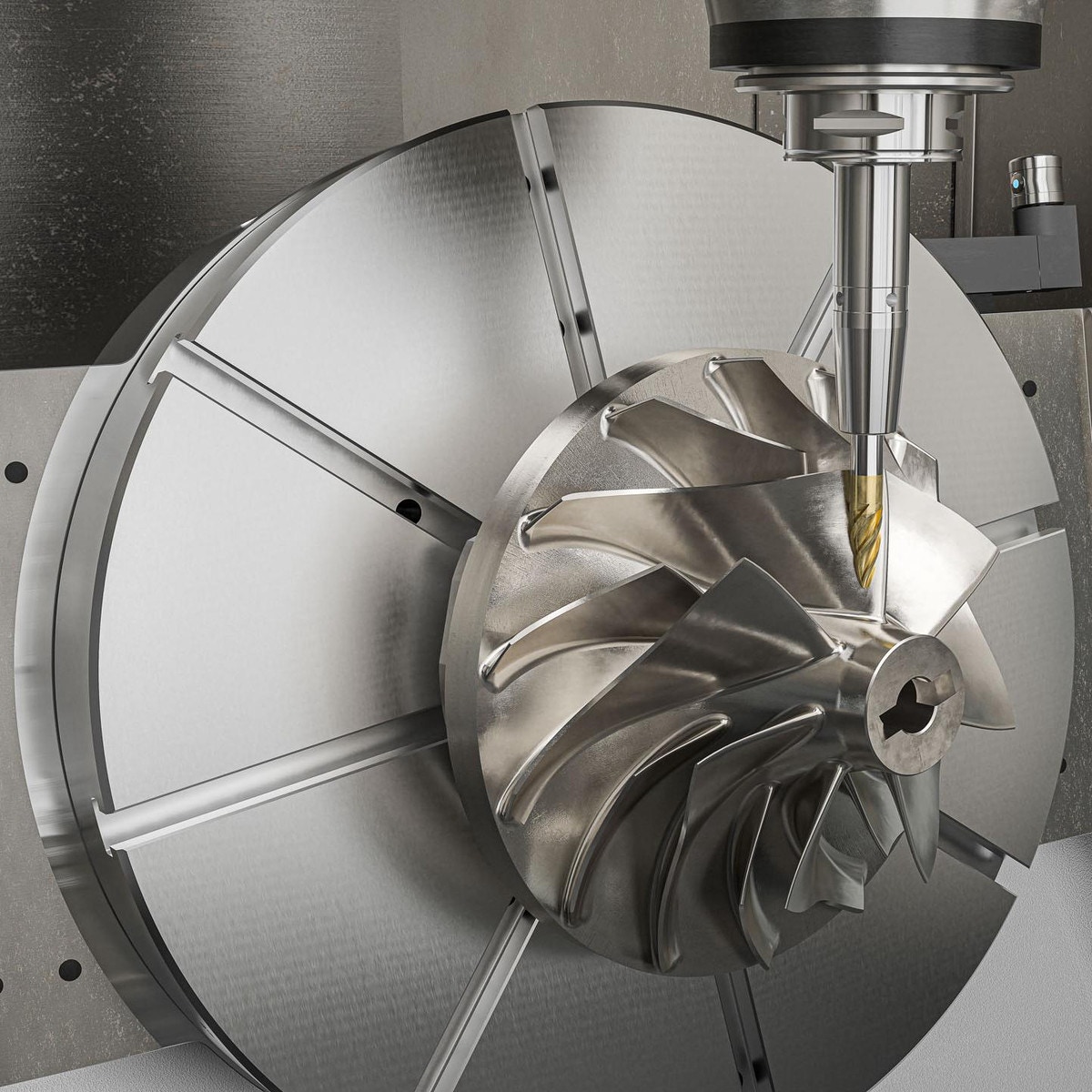

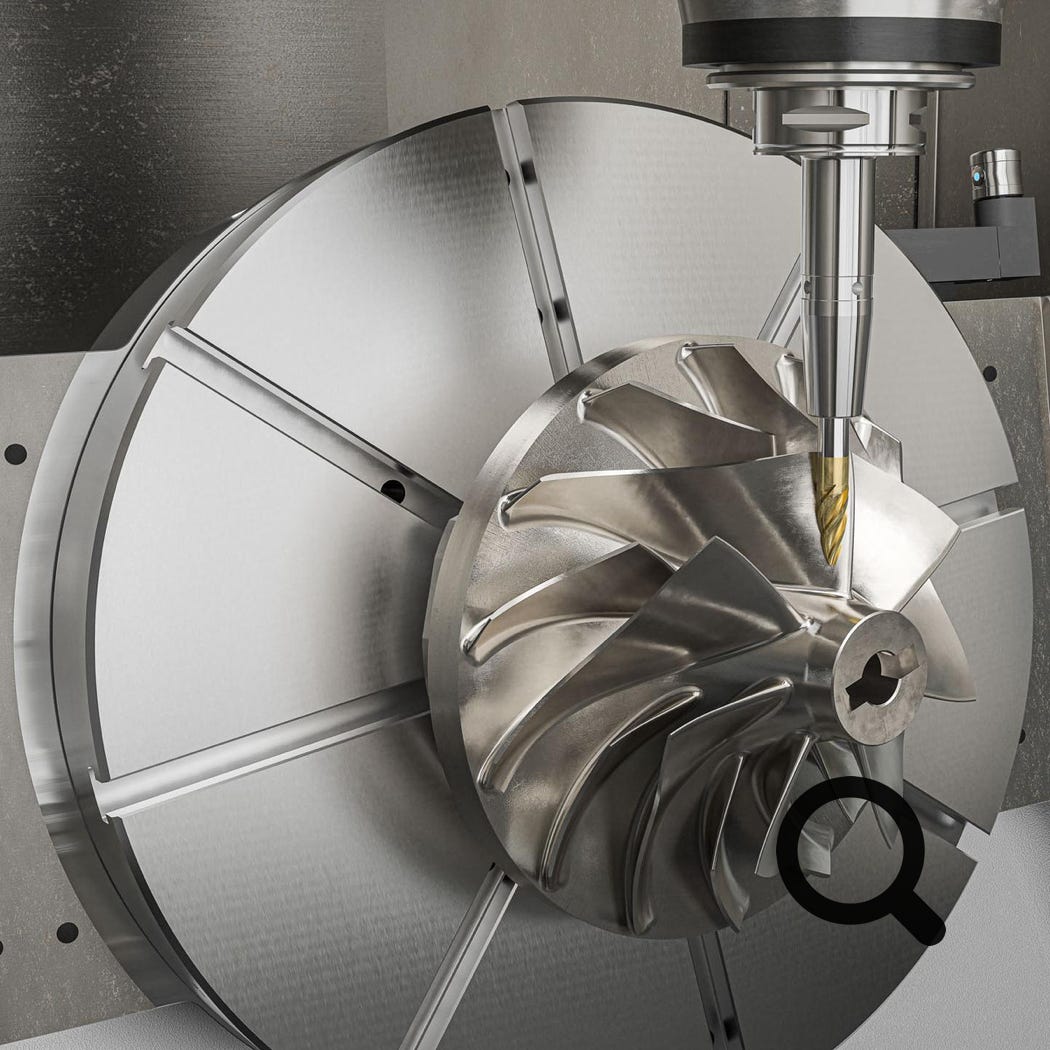

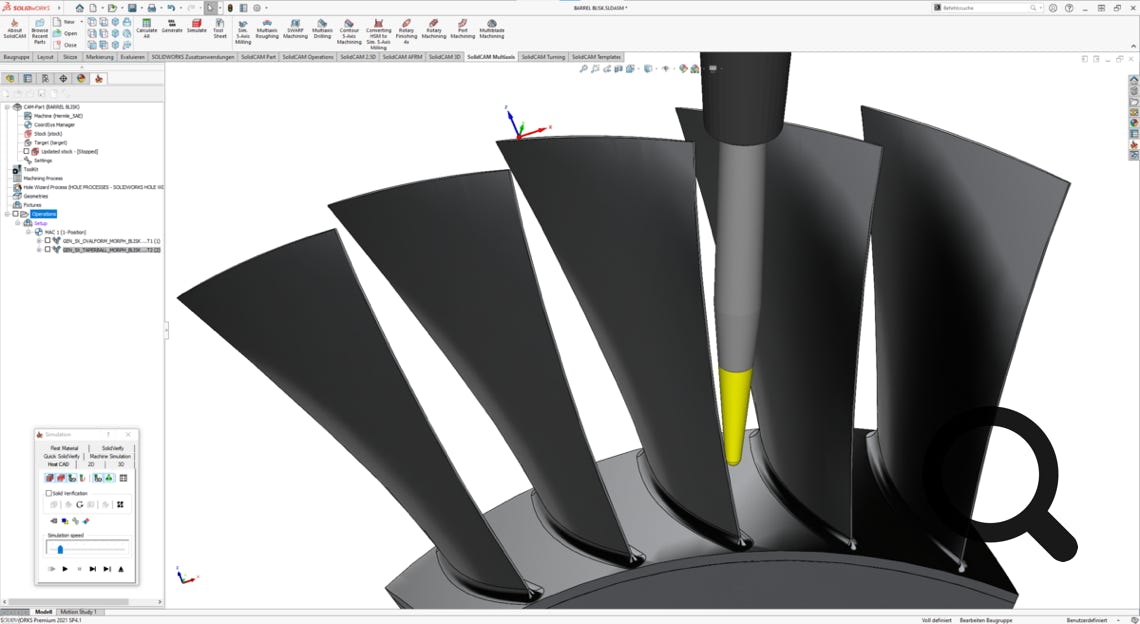

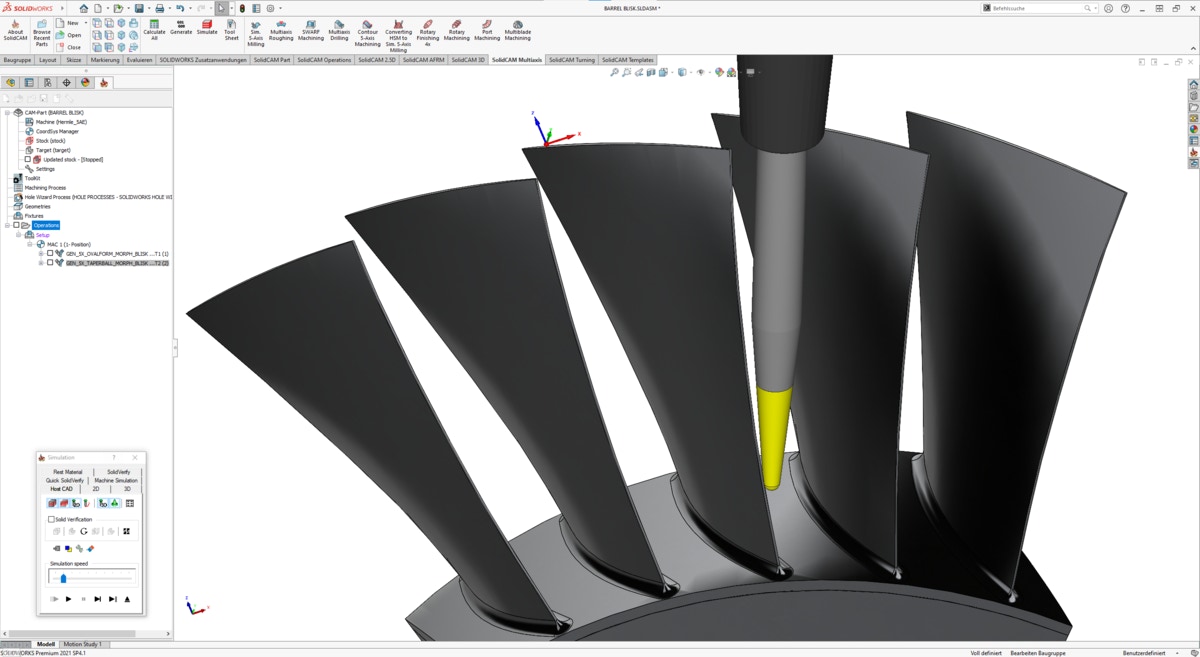

Multi-Blade Machining

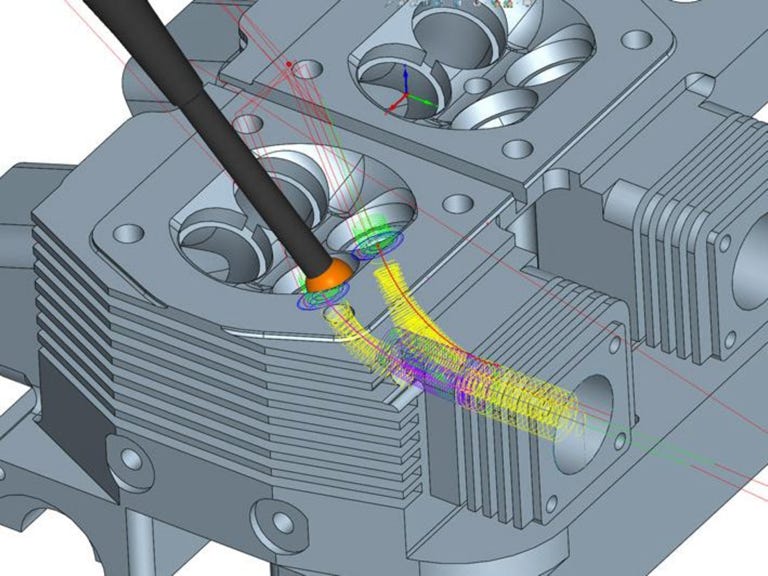

Port Machining
Complete Gouge Control is available for Holder, Arbor and Tool. Adjoining Check Surfaces that are to be avoided can be selected. Several retract strategies are available, under full user control.
Use Tapered, Lollipop, or T-Slot tools for undercuts or difficult to cut geometry.
The advantages of the SolidCAM HSS module translate to significantly increased surface quality. The HSS module is an important and valuable add-on for every machine shop for the machining of all types of parts.
Total freedom to control tool entry and tool exit motion, to remove the need for surface modifications. Toolpaths can be extended or trimmed, gaps and holes can be jumped and you can choose from multiple lead-in/lead-out options.

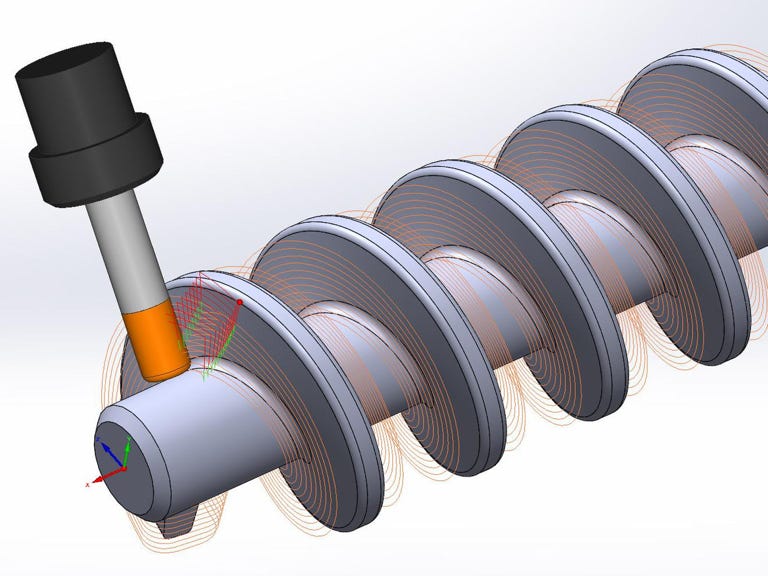

Screw Machining

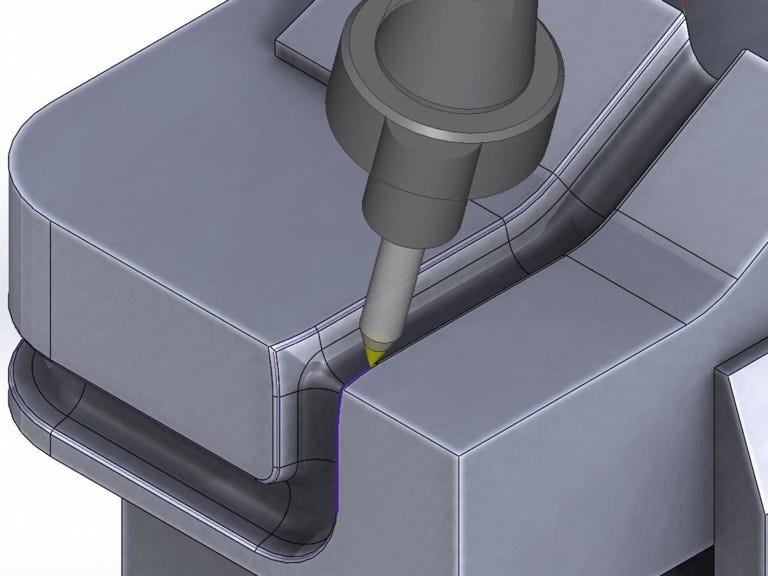

Contour 5-Axis Machining

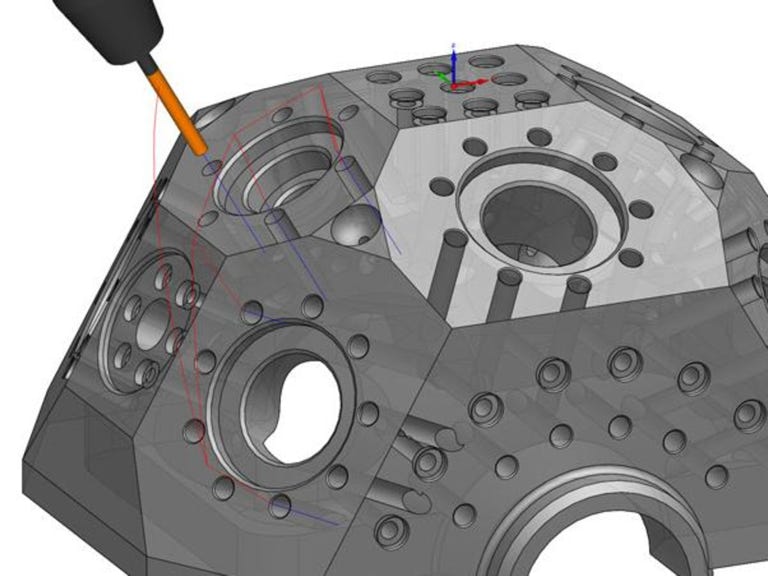

Multi-Axis Drilling

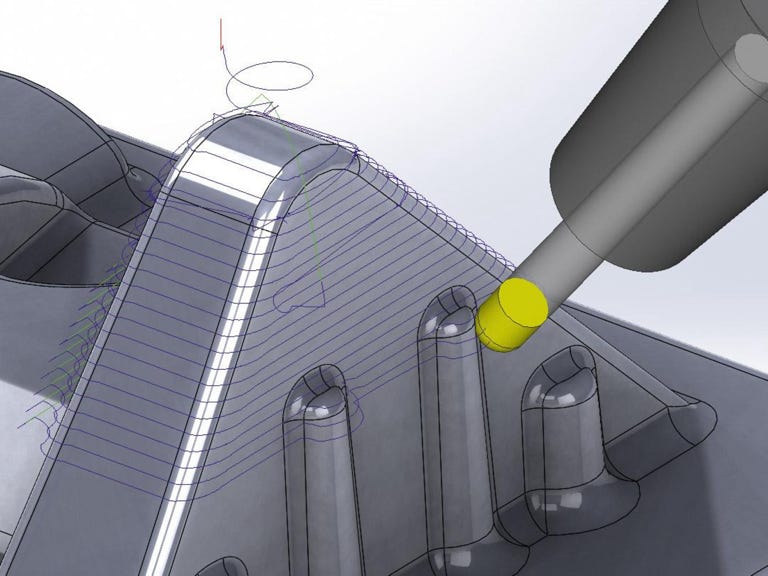

Convert HSM to Sim 5-Axis
Complete Gouge Control is available for Holder, Arbor and Tool. Adjoining Check Surfaces that are to be avoided can be selected. Several retract strategies are available, under full user control.
Use Tapered, Lollipop, or T-Slot tools for undercuts or difficult to cut geometry.
The advantages of the SolidCAM HSS module translate to significantly increased surface quality. The HSS module is an important and valuable add-on for every machine shop for the machining of all types of parts.
Total freedom to control tool entry and tool exit motion, to remove the need for surface modifications. Toolpaths can be extended or trimmed, gaps and holes can be jumped and you can choose from multiple lead-in/lead-out options.
